Diesel jaw crusher, powered by diesel engine, doesn’t need external power supply, and can operate efficiently in remote areas without electricity or unstable power supply. It has a large crushing ratio through periodic extrusion between the movable jaw plate and the fixed jaw plate, and can easily handle materials with compressive strength ≤320Mpa. It is suitable for field operation scenes such as mines, quarries, and construction sites. The diesel jaw crusher has the characteristics of strong power, strong adaptability, easy operation, firmness and durability, and is an ideal choice for crushing operations in remote areas.

Send Inquiry

Product Description

Working principle

The diesel jaw crusher drives the pulley and flywheel to move the eccentric shaft through the diesel engine, driving the movable jaw plate to do periodic reciprocating motion, forming an extrusion crushing chamber with the fixed jaw plate. After the material enters from the feeding mouth, it is squeezed and crushed when the movable jaw plate approaches the fixed jaw plate. The material falls during separation, and this cycle continues until it reaches the required particle size and is discharged from the output mouth.

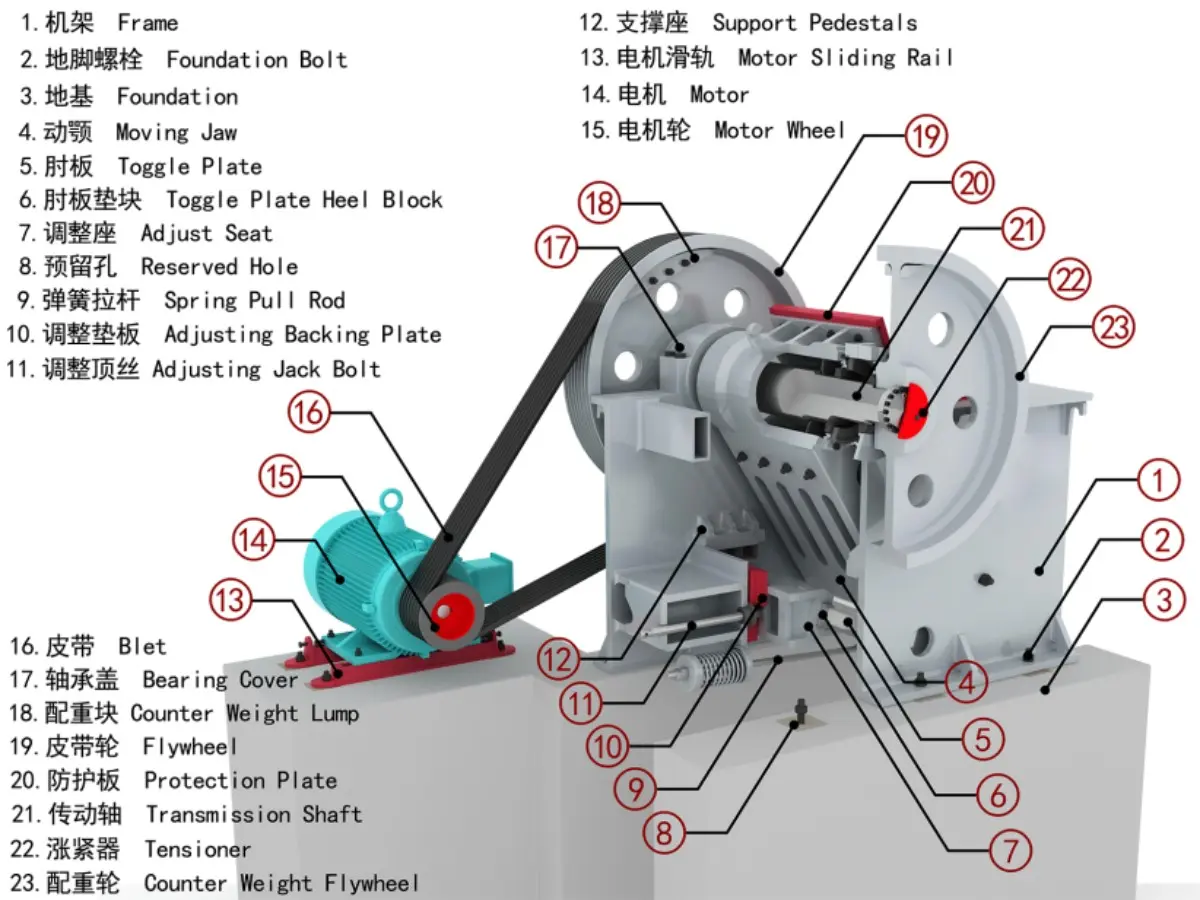

Working principle of diesel jaw crusher

Frequently Asked Questions

How does the diesel jaw crusher drive the pulley and flywheel?
The diesel jaw crusher drives the pulley and flywheel to move the eccentric shaft through the diesel engine.
What motion does the movable jaw plate perform in this crusher?
The movable jaw plate is driven to perform periodic reciprocating motion to crush the materials.
What structures form the extrusion crushing chamber?
The extrusion crushing chamber is formed by the movable jaw plate together with the fixed jaw plate.
When does the squeezing and crushing process happen?
After the material enters from the feeding mouth, it is squeezed and crushed when the movable jaw plate approaches the fixed jaw plate.
How are the crushed materials discharged from the machine?
The material falls during separation, and this cycle continues until it reaches the required particle size and is discharged from the output mouth.
